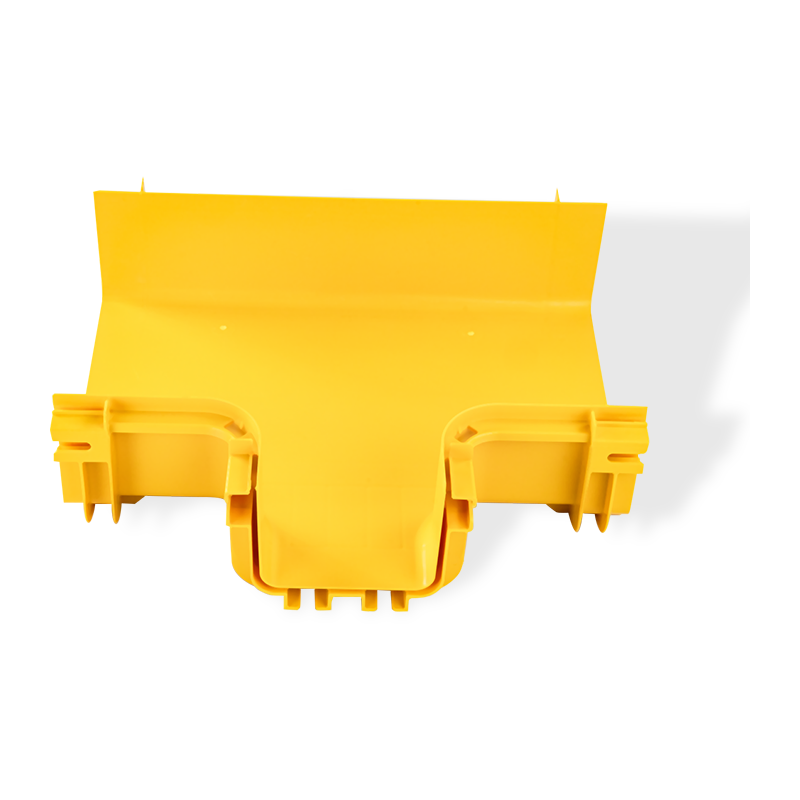

Fiber cable tray CF240 to CF120 horizontal tee

Inquiry

PREV：Fiber cable tray CF240 to CF120 reducer NEXT：Fiber cable tray management drop

Product introduction

The Fiber Cable Tray CF240 to CF120 Horizontal Tee is made of high-quality flame-retardant PVC material and is designed for connecting fiber optic troughs of different specifications. It has a compact structure, comes with connectors, is easy and quick to install, and can effectively guide the fiber optic line to smoothly transition between different troughs. The reducer meets the requirements of the fiber optic bending radius, reduces signal attenuation, and improves data transmission efficiency. The flame retardant performance meets the UL94 FV-0 standard, is safe and reliable, and is suitable for various complex wiring environments. The Fiber Cable Tray CF240 to CF120 Horizontal Tee not only improves the flexibility of fiber optic management, but also ensures the efficiency and stability of data transmission. It is an important part of fiber optic wiring in data centers.

Physical Properties

Type		Fiber Cable Tray/Optic Cable Tray
Material	Material	flame-retardant PVC For Straight Section， flame-retardant ABS For Accessories, the material of flexible tube is PP. Flame-retardant material rated UL94 FV-0
Material	Surface finishing/treatment	/
Dimension range customizable is available	Width	120/240/300/360
	Side Rail Height	100
	Length	2000/3000/Customized
	Thickness/wire diameter
	Max. Working Load
Accessories/related products
Product Features		1. Closed design, protect the fiber optic cables from damage. 2. Fiber raceway duct is made from flame-retardant plastic material with smooth surface and good appearance. 3. Offers bend radius control and ensures fiber radius≧40mm Movable cable exit kit is optional to satisfy the expanding request of date center. 4. Different kind of installation way is available like hanging, cabinet top supporting or connecting with other cable tray.
Color		Yellow(pantone 123c)
Enviroment demmand		Indoor
Application		Suitable for a wide range of applications, including fiber optic cable management, power cable management.

Fiber Cable Tray CF240 to CF120 Horizontal Tee

The Fiber Cable Tray CF240 to CF120 Horizontal Tee is a specialized routing component designed for the systematic management and protection of optical fiber cables within data center environments and telecommunication rooms. This fitting facilitates a 90-degree horizontal branch from a 240mm wide main trunking line to a 120mm wide lateral line. Constructed from flame-retardant ABS materials, it ensures that fiber optic cables are maintained within a controlled pathway, preventing signal degradation caused by excessive bending or mechanical stress. The modular design allows for rapid integration into existing cable management systems without the need for specialized tools.

Core Advantages

◉

Controlled Bend Radius

Every interior surface and transition point is engineered with a minimum bend radius to protect fiber integrity and maintain optimal transmission speeds.

◉

Scalable Infrastructure

The reduction in width from 240mm to 120mm allows for high-density main runs to transition efficiently into equipment racks or smaller distribution zones.

◉

Tool-Free Installation

Utilizes standardized snap-on connectors that secure the fitting to straight channel sections, reducing labor time during network deployment.

◉

Material Durability

The ABS construction is halogen-free and compliant with UL94-V0 flammability standards, providing structural stability and fire safety in critical infrastructure.

Product Characteristics

Specification	Details
Material	Flame-retardant ABS (UL94-V0)
Main Channel Width	240 mm
Branch Channel Width	120 mm
Installation Type	Horizontal Tee (Reducing)
Color Standard	Yellow (Industry standard for Fiber Optic)

Application Scenarios

Hyperscale Data Centers – Used in overhead or under-floor cable routing to distribute fiber from core switches to server aisles.

Telecommunication Central Offices – Organizing complex fiber patches between transmission equipment and distribution frames.

Enterprise Server Rooms – Providing a protected pathway for backbone cabling transitions in medium-sized network environments.

Installation Precautions

Support Intervals: Ensure that support brackets are placed within 500mm of the tee junction to prevent sagging under the weight of high-density cable loads.
Cap Integration: Always use the matching cover to prevent the accumulation of dust and debris, which can impact the thermal performance of the cabling environment.

Storage Conditions

Temperature Range: Store in a dry environment with ambient temperatures between -20°C and +55°C to maintain the mechanical properties of the ABS material.
UV Exposure: Keep components in original packaging or away from direct sunlight during long-term storage to prevent polymer degradation.

Flame-retardant ABS · UL94-V0 · Halogen-free
