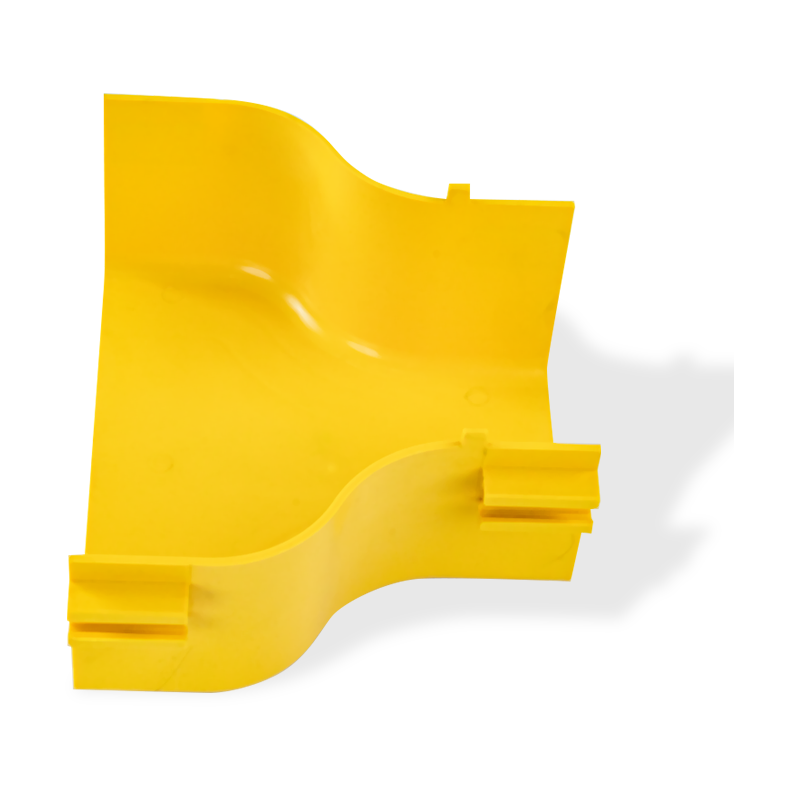

Fiber cable tray CF240 to CF120 reducer

Inquiry

PREV：UL94 FV-0 standard flame-retardant PVC horizontal tee for Fiber cable tray NEXT：Fiber cable tray CF240 to CF120 horizontal tee

Product introduction

The fiber optic cable tray CF240 to CF120 reducer is made of the same flame-retardant PVC material as the main body of the trough, and is designed to connect fiber optic troughs of different specifications. It has a compact structure and is easy to install. It can effectively guide the fiber optic line to smoothly transition between troughs of different sizes and reduce signal loss. The reducer has a smooth surface to ensure that the optical fiber is not damaged during the turn. Its design complies with the fiber optic bending radius standard to ensure stable optical fiber performance. The fiber optic cable tray reducer not only improves the flexibility of optical fiber management, but also ensures the efficiency and stability of data transmission. Its flame retardant performance complies with the UL94 FV-0 standard, which is safe and reliable and suitable for various optical fiber wiring scenarios such as data centers and communication rooms.

Physical Properties

Type		Fiber Cable Tray/Optic Cable Tray
Material	Material	flame-retardant PVC For Straight Section， flame-retardant ABS For Accessories, the material of flexible tube is PP. Flame-retardant material rated UL94 FV-0
Material	Surface finishing/treatment	/
Dimension range customizable is available	Width	120/240/300/360
	Side Rail Height	100
	Length	2000/3000/Customized
	Thickness/wire diameter
	Max. Working Load
Accessories/related products
Product Features		1. Closed design, protect the fiber optic cables from damage. 2. Fiber raceway duct is made from flame-retardant plastic material with smooth surface and good appearance. 3. Offers bend radius control and ensures fiber radius≧40mm Movable cable exit kit is optional to satisfy the expanding request of date center. 4. Different kind of installation way is available like hanging, cabinet top supporting or connecting with other cable tray.
Color		Yellow(pantone 123c)
Enviroment demmand		Indoor
Application		Suitable for a wide range of applications, including fiber optic cable management, power cable management.

Fiber routing component · flame-retardant ABS

Fiber Cable Tray CF240 to CF120 Reducer

The Fiber Cable Tray CF240 to CF120 Reducer is a precision-engineered structural component designed for the systematic transition of optical fiber routing systems. It facilitates the reduction of cable tray widths from 240mm to 120mm, ensuring organized cable management as fiber density decreases along the distribution line. Manufactured from flame-retardant ABS materials, this fitting maintains the required minimum bend radius of 30mm for optical fibers, preventing signal loss or structural micro-cracks. The smooth internal surfaces and rounded edge profiles eliminate potential snagging or physical abrasion during the installation and maintenance of delicate fiber optic cables.

Core Advantages

Structural Integrity: Engineered with a high-impact resistance profile to support the weight of high-density fiber bundles without sagging or deformation.
Signal Protection: The integrated radial curvature ensures that fiber optic cables are never subjected to sharp angles, maintaining total internal reflection and signal stability.
Tool-less Integration: Features a snap-on connection mechanism that allows for rapid assembly and modification of the cable routing path without specialized hardware.
Material Durability: The halogen-free, flame-retardant polymer construction complies with UL94V-0 safety standards for data center and telecommunication environments.

Specifications snapshot

Inlet width240 mm

Outlet width120 mm

Bend radius≥ 30 mm

Material classUL94-V0 / Halogen-free

Temperature range-25°C to +75°C

Product Specifications and Features

Parameter	Technical Specification
Inlet Width	240 mm
Outlet Width	120 mm
Material	Flame-Retardant ABS / PC Plastic
Bend Radius Protection	≥ 30 mm
Operating Temperature	-25°C to +75°C
Color Compliance	Standard Yellow (RAL 1023) or custom options

Primary Application Scenarios

Data Centers – Managing fiber optic overhead or underfloor routing between main distribution areas and server racks.

Telecommunication Exchange Offices – Organizing central office fiber connections where high-capacity trunks branch into smaller distribution lines.

Cloud Computing Facilities – Structured cabling for hyper-scale server environments requiring frequent scalability and path modification.

Control Rooms – Providing a secure pathway for fiber optics in industrial automation and monitoring centers.

Installation Protocol

Coupling Mechanism: Use compatible joiners to lock the CF240 and CF120 sections securely to the reducer ports.
Alignment: Ensure the reducer is horizontally aligned with the main tray run to prevent uneven weight distribution on the fiber bundles.

Storage and Handling

Storage Conditions: Keep in a dry, ventilated environment away from direct UV exposure to maintain the long-term elasticity of the polymer.
Loading Limits: Adhere to the calculated cable volume capacity for 120mm trays to ensure the reducer does not exceed its structural weight limit.
Cleaning: Use non-corrosive cleaning agents or anti-static wipes to remove dust from the internal surfaces before cable deployment.
