  • Fiber cable tray management drop
  • Fiber cable tray management drop
Product introduction
NEW COMPONENT · FIBER ROUTING

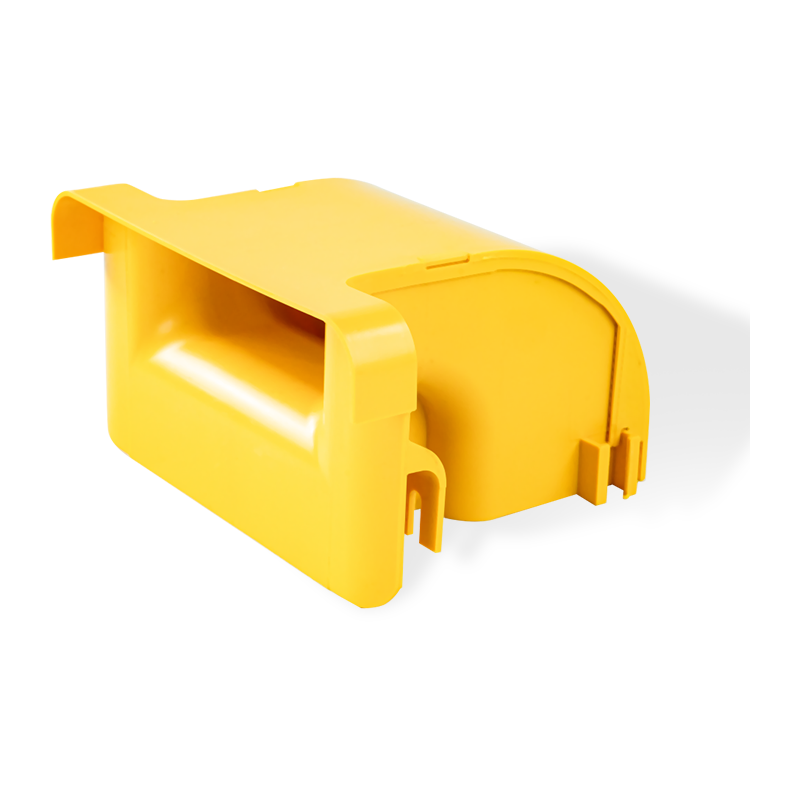

Fiber cable tray management drop
The Fiber Cable Tray Management Drop is a precision-molded component engineered to transition optical fiber cables from horizontal overhead trays into vertical equipment frames or termination enclosures. Designed with a smooth, flared curvature, this drop maintains the critical bend radius required for single-mode and multi-mode fibers, preventing micro-bending losses and ensuring signal integrity. Manufactured from flame-retardant ABS or PVC (UL94 V-0), the drop provides a rugged, non-abrasive pathway for delicate fiber jackets during installation, maintenance, and high-density cable routing.
Material
Flame-retardant ABS / PVC
UL94 V-0 · halogen-free
Bend radius
≥30mm · ≥50mm options
maintains fiber integrity
Mounting
Snap-fit / screw attachment
tool-less or secured
Functional advantages
01
Bend radius compliance
Flared geometry maintains ≥30mm or ≥50mm bend radius, preventing signal attenuation and micro-cracking in fiber cores.
02
Flame-retardant construction
ABS or PVC materials rated UL94 V-0, suitable for data centers and telecommunication facilities with strict fire safety codes.
03
Snag-free surface
Smooth internal and external profiles eliminate sharp edges, reducing friction damage to fiber patch cords during pulling.
04
Modular integration
Snap-fit or screw-mount attachment allows rapid installation on standard fiber raceways without specialized tools.
Product specifications
Parameter Technical specification
Material Flame-retardant ABS / PVC (UL94 V-0)
Bend radius options R30, R50, R100 (customizable)
Operating temperature -25°C to +75°C
Installation method Snap-on / Screw-mount / Side-rail attachment
Color options Yellow (standard), Orange, Black
Compatible tray widths 120mm, 240mm, 300mm
Application scenarios
Data center overhead routing
Manages fiber drops from overhead raceways to server racks and optical distribution frames (ODFs).
Telecommunication central offices
Facilitates vertical transitions between cable trays and termination panels in high-density fiber environments.
Enterprise server rooms
Provides organized cable entry points for patch panel connections in medium-scale network installations.
Industrial control hubs
Secures fiber transitions in automation systems where vibration and space constraints are factors.
Installation guidelines
Align drop center with vertical cable manager to avoid lateral stress on fiber bundles during transition.
Maintain cable fill below 70% of cross-sectional area to preserve airflow and future accessibility.
Verify snap-fit connectors are fully engaged with tray sidewall to prevent detachment under cable load.
Storage & handling
Store in dry, ventilated area away from UV exposure to preserve polymer flexibility and flame-retardant properties.
Avoid contact with strong solvents or acidic cleaning agents that may degrade surface finish.
Inspect drop components for surface imperfections before installation to ensure smooth cable routing.
Physical Properties
Type Fiber Cable Tray/Optic Cable Tray
Material Material flame-retardant PVC For Straight Section, flame-retardant ABS For Accessories, the material of flexible tube is PP. Flame-retardant material rated UL94 FV-0
Surface finishing/treatment

/

Dimension range

customizable is available

Width 120/240/300/360
Side Rail Height 100
Length 2000/3000/Customized
Thickness/wire diameter
Max. Working Load
Accessories/related products
Product Features

1. Closed design, protect the fiber optic cables from damage.

2. Fiber raceway duct is made from flame-retardant plastic material with smooth surface and good appearance.

3. Offers bend radius control and ensures fiber radius≧40mm Movable cable exit kit is optional to satisfy the expanding request of date center.

4. Different kind of installation way is available like hanging, cabinet top supporting or connecting with other cable tray.

Color Yellow(pantone 123c)
Enviroment demmand Indoor
Application Suitable for a wide range of applications, including fiber optic cable management, power cable management.
