Product introduction
SS · TROUGH ANTI-SLIP · DOWNWARD BEND
SS down round bend accessories for trough anti-slip cable tray

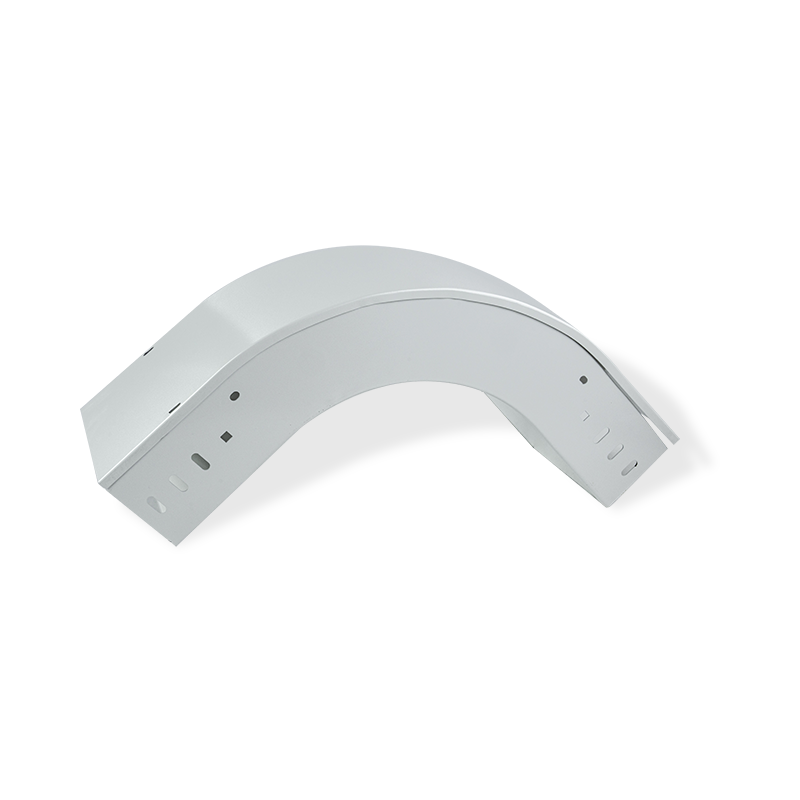

Stainless steel down round bend accessories for trough anti-slip cable tray are precision-engineered fittings designed to facilitate vertical downward transitions in cable management systems. Manufactured from AISI 304 or 316L stainless steel, these components feature an anti-slip embossed or chequered pattern on the trough bottom to prevent cable displacement during installation and under vibration. The downward round bend configuration maintains a smooth, controlled radius that preserves cable bend radius requirements while providing a continuous support surface. The anti-slip surface texture enhances cable retention, reducing the risk of movement that can lead to insulation wear or signal degradation. These accessories are ideal for environments requiring corrosion resistance, hygiene, or enhanced cable stability, including food processing, pharmaceutical, and marine applications.
CORE ADVANTAGES
Corrosion resistance
AISI 304/316L stainless steel provides superior protection against moisture, chemicals, and saline environments, eliminating the need for surface coatings.
Anti-slip surface
Embossed or chequered pattern on the trough bottom prevents cable slippage during installation and maintains cable position under dynamic loads.
Bend radius protection
Curved transition maintains minimum bend radius for power and data cables, preventing insulation stress and signal attenuation.
Hygienic design
Smooth stainless steel surfaces resist bacterial growth and are easy to clean, making them suitable for food and pharmaceutical environments.
SS down round bend accessories for trough anti-slip cable tray
Material AISI 304 / 316L stainless steel
Finish No. 2B / No. 4 brushed / pickled
Angle 90° downward
Width range 100mm – 600mm
Anti-slip pattern Embossed diamond / chequered
PRODUCT SPECIFICATIONS
Material grade AISI 304 (1.4301) standard · AISI 316L (1.4404) for coastal/chemical environments
Surface finish No. 2B mill finish, No. 4 brushed, or pickled/passivated
Anti-slip pattern Embossed diamond (3mm height) or chequered plate (5mm raised pattern)
Bend configuration 90° downward round bend (vertical transition)
Width compatibility 100mm, 150mm, 200mm, 300mm, 400mm, 500mm, 600mm
Side wall height 50mm, 80mm, 100mm, 120mm (matching tray height)
Material thickness 1.2mm – 2.5mm depending on width and load rating
Bend radius (inner) ≥100mm (standard) · ≥150mm (heavy-duty / fiber optic)
Temperature range -40°C to +400°C (continuous)
APPLICATION SCENARIOS
Food and beverage processing – Stainless steel construction withstands frequent wash-downs and hygienic cleaning protocols.
Pharmaceutical manufacturing – Smooth, non-porous surfaces prevent bacterial accumulation and meet GMP requirements.
Marine and offshore installations – 316L grade provides resistance to saltwater corrosion in shipboard and platform environments.
Chemical processing plants – Stainless steel resists aggressive chemicals and acidic atmospheres where carbon steel would fail.
Data centers – Anti-slip surface prevents cable movement in high-density fiber and copper installations under raised floors.
FREQUENTLY ASKED QUESTIONS
+ What is the difference between AISI 304 and 316L for these accessories?
AISI 304 is the standard grade offering excellent corrosion resistance for most indoor and outdoor applications. AISI 316L contains molybdenum, providing enhanced resistance to chlorides and acids, making it the preferred choice for coastal, marine, and chemical processing environments where salt spray or aggressive chemicals are present.
+ How does the anti-slip pattern affect cable pulling?
The embossed diamond or chequered pattern provides increased friction that prevents cable movement after installation. During cable pulling, the raised pattern does not significantly increase pulling resistance, as cables are typically pulled along the tray axis. For sensitive fiber optic cables, a smoother embossed pattern with reduced height is available.
+ Can these accessories be welded to existing stainless steel tray systems?
Yes. The accessories are fully weldable using TIG or MIG techniques with appropriate stainless steel filler wire. Post-weld passivation is recommended to restore the corrosion-resistant oxide layer. Bolt-on splice plates are also available for tool-free installation.
+ What bend radius is recommended for fiber optic cables?
For standard single-mode and multi-mode fiber optic cables, a minimum bend radius of 150mm is recommended to prevent micro-bending losses. Our heavy-duty down bend accessories provide ≥150mm inner radius to accommodate sensitive fiber installations while maintaining the anti-slip surface.
INSTALLATION GUIDELINES
Use stainless steel fasteners (AISI 304 or 316) for all connections to prevent galvanic corrosion between dissimilar metals.
Support the bend at entry and exit points with additional brackets to prevent stress on the welded or bolted joints, particularly with heavy cable fills.
Verify that the bend radius selected matches the cable manufacturer's specifications for the largest diameter cable in the bundle.
MAINTENANCE & HANDLING
Clean stainless steel surfaces using non-abrasive, non-chlorinated cleaning agents to preserve the passive oxide layer and maintain corrosion resistance.
Inspect anti-slip pattern for deformation or wear after heavy cable pulling; minor surface marks can be dressed with stainless steel finishing tools.
Store in a clean, dry area away from contact with carbon steel or other dissimilar metals to avoid surface contamination and pitting corrosion.
SS down round bend · anti-slip trough · AISI 304/316L · 90° downward · embossed diamond/chequered · 100-600mm width
Physical Properties
Type Through type
Material Material Steel、 Aluminum、ss304、ss316L
Surface finishing/treatment

Pre-galvanized 8um/ Electro zinc Plating（≥12um）

Hot -dip galvanized（＞60um）

Plastic-spayed（＞60um）

Power coating

Acid washing +polishing （option）

Dimension range

customizable is available

 Width 50/100/150/200/250/300mm
Side Rail Height 25/50/75/100/150mm
Length
Thickness/wire diameter 0.8/1/1.2mm
Max. Working Load According To Size
Accessories/related products
Product Features Fullv enclosed cable travs are effective in shielding control cables from interference and protecting
cables in highly corrosive environments.
Color Silver or others/According to customers
Enviroment demmand Indoor&dry normal temperature light anti-corrosion&outside wet high temperature&heavy corrosion&dry normal temperature
Application Oil gas、chemical、ships、building、infransture
Trough type anti-slip cable tray series
Spray Plastic Down Round Bend Accessories for Trough Type Anti-Slip Cable Tray
This product is an essential component of the trough-type anti-slip cable tray system, designed for applications requiring downward bending in cable routing systems. It is constructed with steel as the base material and features a spray plastic surface treatment with a coating thickness exceeding 60 micrometers, ensuring long-lasting color retention and adaptability to various environmental conditions.
Product Features
Base Material and Structure
Steel base material provides structural strength and long-term stability
Surface Treatment
Spray plastic coating with thickness over 60 micrometers enhances corrosion resistance and maintains color durability
Design Characteristics
Trough structure with downward round bend design allows for easy installation and disassembly, supporting flexible cable routing in downward bending paths
Cable Protection
Fully enclosed cable conductor design offers shielding protection for control cables, reducing electromagnetic interference and preventing physical damage
Product Advantages
  • Spray plastic surface improves corrosion resistance, suitable for humid and corrosive environments
  • Trough structure and downward bend design simplify cable routing, particularly in complex pathways
  • Fully enclosed design provides comprehensive cable protection, extending cable service life
  • Easy installation and disassembly reduce maintenance time and costs
Application Areas
Industrial plants Power facilities Communication base stations Transportation hubs Other settings requiring downward bending in cable routing
⌀
Coating thickness verified by magnetic thickness gauge. Minimum 60μm applied on all exposed surfaces including inner radius.
