Product introduction
TROUGH TYPE · ROUND BEND · CABLE ROUTING

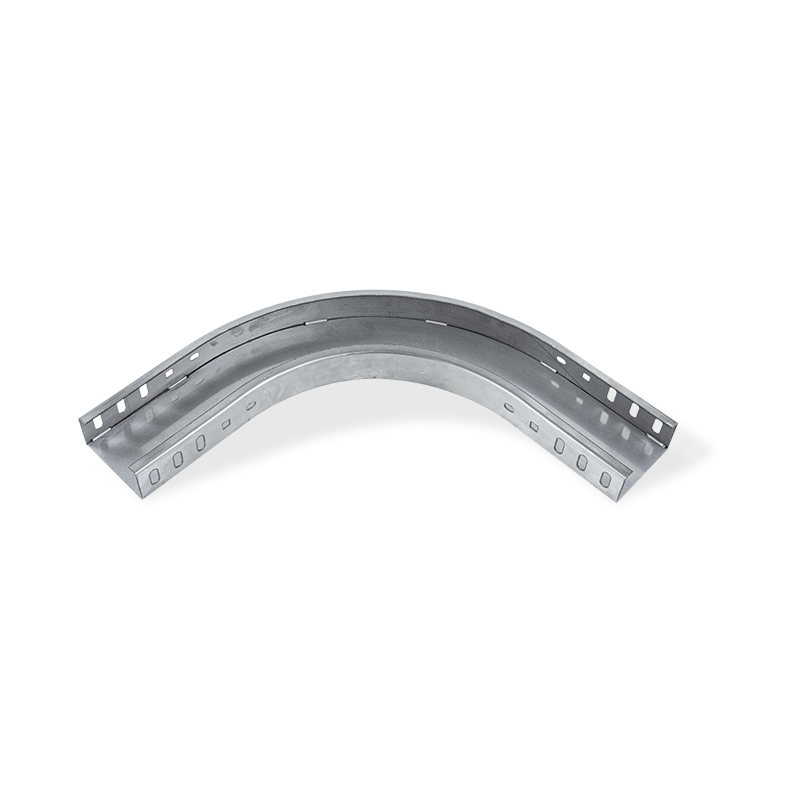

Round-bend accessories for trough type cable tray
Round-bend accessories for trough type cable tray are engineered components designed to facilitate smooth directional changes in cable management systems. These fittings provide a curved transition path that maintains the minimum bend radius required for power and data cables, preventing insulation stress and signal degradation. Manufactured from cold-rolled steel with electrostatic powder coating (spray plastic) or hot-dip galvanized finish, the accessories are available in 45°, 90°, and 135° configurations for horizontal and vertical applications. The trough-type design ensures continuous cable support through the bend, eliminating pinch points and maintaining the structural integrity of the cable pathway. These accessories are compatible with standard trough tray widths ranging from 100mm to 600mm and are suitable for industrial, commercial, and infrastructure projects requiring reliable cable routing.
Round-bend accessories for trough type cable tray
CORE ADVANTAGES
Bend radius compliance
Engineered curvature maintains minimum bend radius for power and data cables, preventing insulation stress and signal attenuation.
Continuous cable support
Trough-type design provides uninterrupted support through the bend, eliminating pinch points and preventing cable sag.
Corrosion protection
Electrostatic powder coating or hot-dip galvanizing provides durable protection against moisture, chemicals, and atmospheric exposure.
Modular compatibility
Standardized dimensions and bolt-hole configurations ensure seamless integration with existing trough tray systems from multiple manufacturers.
Material Cold-rolled steel / hot-rolled steel
Finish Powder coated / hot-dip galvanized
Angles 45° / 90° / 135°
Width range 100mm – 600mm
Coating 60-100μm powder / 85μm galvanized
PRODUCT SPECIFICATIONS
Base material Cold-rolled carbon steel (Q235B) or hot-rolled steel
Surface treatment Electrostatic polyester/epoxy powder coating (RAL 7035, 9002, or custom) / Hot-dip galvanized (ASTM A123)
Available angles Horizontal: 45°, 90°, 135° · Vertical: 45°, 90° (upward/downward)
Width compatibility 100mm, 150mm, 200mm, 300mm, 400mm, 500mm, 600mm
Side wall height 50mm, 80mm, 100mm, 120mm (matching tray height)
Material thickness 1.2mm – 2.5mm depending on width and load rating
Bend radius (inner) ≥100mm (standard) · ≥150mm (heavy-duty)
Connection type Bolted splice plates or welded flanges (custom)
APPLICATION SCENARIOS
Industrial manufacturing plants – Routing power and control cables around machinery, columns, and structural obstacles.
Data centers – Managing fiber optic and copper cable transitions in overhead and underfloor cable pathways.
Commercial buildings – Vertical and horizontal cable routing within electrical rooms, shafts, and ceiling voids.
Infrastructure projects – Tunnels, bridges, and transportation hubs requiring durable cable management solutions.
Oil and gas facilities – Corrosion-resistant bends for harsh environment cable tray systems.
FREQUENTLY ASKED QUESTIONS
▶ What is the minimum bend radius for standard configurations?
Standard round-bend accessories provide an inner bend radius of ≥100mm, which is suitable for most power and control cables. For fiber optic cables or sensitive data cables, heavy-duty versions with ≥150mm radius are available to meet specific cable manufacturer requirements.
▶ Can these accessories be used with pre-galvanized tray systems?
Yes. The bend accessories are compatible with all standard trough tray systems. For pre-galvanized trays, we recommend powder-coated bends to match the aesthetic and corrosion resistance. For hot-dip galvanized systems, galvanized bends provide optimal material continuity and protection.
▶ How are the accessories connected to straight tray sections?
Bend accessories are connected using bolted splice plates (included with each fitting). Standard hardware includes stainless steel or galvanized bolts, washers, and nuts. Pre-punched holes align with standard tray coupler patterns for tool-free alignment and secure attachment.
▶ Are custom bend angles or radii available?
Custom angles (15°, 30°, 60°, or non-standard) and increased bend radii are available upon request. Minimum order quantities apply. Please consult the engineering team with your specific routing requirements and cable specifications.
INSTALLATION GUIDELINES
Ensure the bend radius selected is adequate for the largest cable diameter in the bundle. Refer to cable manufacturer specifications for minimum bend radius requirements.
Use stainless steel fasteners when installing in corrosive environments to prevent galvanic corrosion between dissimilar metals.
Support bends with additional brackets at the entry and exit points to prevent sagging, especially in horizontal applications with heavy cable loads.
STORAGE & HANDLING
Store bend accessories in a dry, ventilated area to prevent moisture condensation and potential coating damage prior to installation.
Inspect powder-coated surfaces for chips or scratches upon delivery; apply touch-up coating to any exposed metal to maintain corrosion protection.
Do not stack heavy objects on top of bend fittings during storage, as this may cause deformation of the curved section.
Round-bend accessories · trough type · 45°/90°/135° · powder coated or galvanized · 100-600mm width
Physical Properties
Type Through type
Material Material Steel、 Aluminum、ss304、ss316L
Surface finishing/treatment

Pre-galvanized 8um/ Electro zinc Plating（≥12um）

Hot -dip galvanized（＞60um）

Plastic-spayed（＞60um）

Power coating

Acid washing +polishing （option）

Dimension range

customizable is available

 Width 50/100/150/200/250/300mm
Side Rail Height 25/50/75/100/150mm
Length
Thickness/wire diameter 0.8/1/1.2mm
Max. Working Load According To Size
Accessories/related products
Product Features Fullv enclosed cable travs are effective in shielding control cables from interference and protecting
cables in highly corrosive environments.
Color Silver or others/According to customers
Enviroment demmand Indoor&dry normal temperature light anti-corrosion&outside wet high temperature&heavy corrosion&dry normal temperature
Application Oil gas、chemical、ships、building、infransture
