Product introduction
Glazed tile mounting system

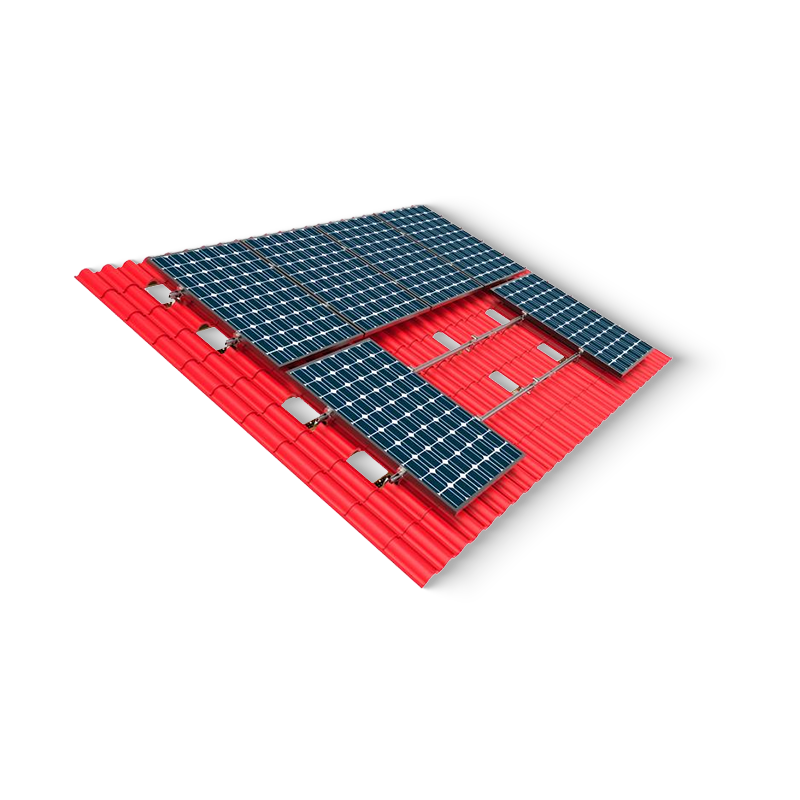

The Glazed Tile Mounting System is a specialized structural solution designed for the attachment of photovoltaic modules and other rooftop equipment onto glazed (smooth, curved, or interlocking) clay or concrete roof tiles. Engineered to interface with the unique geometry of glazed tiles without compromising the waterproofing integrity of the roof, this system utilizes adjustable tile hooks, extruded aluminum rails, and stainless steel fasteners. The design accommodates thermal expansion, wind uplift forces, and snow loads while preserving the aesthetic character of the roof surface. Suitable for both retrofit and new construction projects, the system supports standard photovoltaic panel configurations with tilt angles parallel to the roof plane or with minimal elevation adjustments.
Material
Anodized Aluminum AL6005-T5
Fasteners
Stainless Steel SUS304
Tile compatibility
Glazed clay · concrete · interlocking
Wind load
Up to 55 m/s
A1
Waterproof integrity
Tile hooks are designed to sit under or over glazed tiles with EPDM pads or rubber gaskets, eliminating roof penetrations and maintaining the original weather barrier.
A2
Tile load distribution
System spreads PV module weight evenly across multiple tile contact points, preventing localized cracking or damage to fragile glazed surfaces.
A3
Aesthetic preservation
Anodized aluminum and low-profile rail design minimize visual impact, allowing the roof's architectural character to remain prominent.
A4
Modular adaptability
Adjustable hook positions accommodate varying tile profiles, batten spacings, and roof pitches, enabling seamless integration across different roof geometries.
Technical specifications
Base material Anodized Aluminum AL6005-T5 (12-15μm coating)
Fastener material Stainless Steel SUS304 / SUS316 (coastal zones)
Tile types Glazed clay, concrete, interlocking (S-type, M-type, flat)
Hook adjustment range ±20mm vertical · ±15mm horizontal
Wind load resistance Up to 55 m/s (tested per EN 1991-1-4)
Snow load capacity Up to 1.2 kN/m²
Rail profile 30x30mm · 40x40mm (customizable)
Operating temperature -30°C to +85°C
Residential heritage renovations – PV integration on listed buildings with glazed clay tile roofs.
Commercial and municipal buildings – Schools, town halls, and cultural centers with curved glazed roofing.
Luxury hospitality projects – Hotels and resorts requiring low-profile solar integration without altering roof appearance.
Historic district solar installations – Meeting visual impact guidelines for protected architectural zones.
Installation sequence
01
Roof survey and tile mapping
Identify tile type, batten spacing, and glazed surface condition. Mark hook positions aligned with underlying roof rafters.
02
Hook installation
Slide adjustable hooks under or over glazed tiles with EPDM protection pads. Secure using stainless steel bolts with specified torque (12-15 N·m).
03
Rail attachment
Mount aluminum rails onto hooks using pre-assembled connectors. Level rails across the array using integrated adjustment slots.
04
Module clamping
Position PV panels on rails and secure using top or side clamps. Verify ground bonding continuity across all components.
Physical Properties
Type Photovoltaic stents
Material Material Aluminum Alloy
Surface finishing/treatment

/

Dimension range

customizable is available

Width Customizable is available
Side Rail Height
Length
Thickness/wire diameter
Max. Working Load
Accessories/related products
Product Features

1. Light weight

2. Easy Installation

3. Strongly adaptability

Color

Design wind pressure: 0.55KN/㎡

Design snow pressure: 0.5KN/㎡

Service life: 30 Years

Enviroment demmand
Application Glazed title roof
