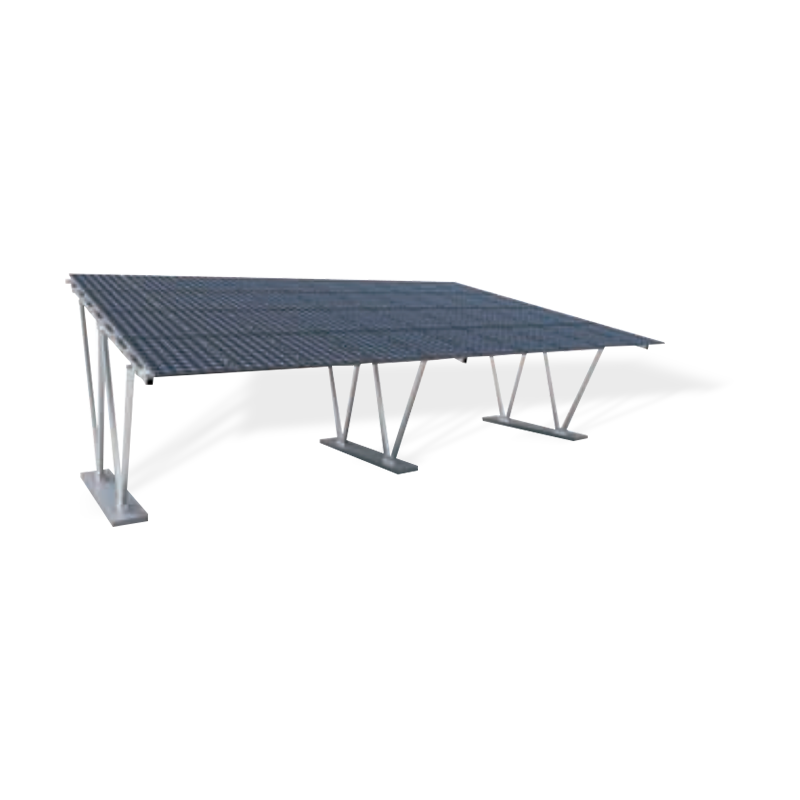

Shed photovoltaic mounting system

Inquiry
PREV：Horizontal single axis tracking supportNEXT：Ground photovoltaic mounting system
Product introduction
AGRIVOLTAICS · GROUND MOUNT · OPEN STRUCTURE
Shed photovoltaic mounting system
The Shed Photovoltaic Mounting System is an open-structure ground mounting solution specifically engineered for agricultural photovoltaic (agrivoltaic) applications and large-scale utility projects where elevated panel placement enables dual land use. Constructed from hot-dip galvanized steel or anodized aluminum, this system features a high-clearance design that allows agricultural machinery, livestock, or crops to operate beneath the solar array. The modular framework utilizes pre-assembled components and adjustable pile foundations to accommodate varying terrain conditions, ensuring rapid deployment while maintaining structural stability under wind and snow loads. Its elevated configuration promotes natural ventilation and reduces soiling losses, contributing to consistent energy yield over the system's operational life.
CORE ADVANTAGES
Dual land utilization
Elevated structure enables simultaneous crop cultivation, livestock grazing, or equipment passage beneath panels, maximizing land productivity per hectare.
High clearance design
Standard ground clearance of 2.5-4.5 meters accommodates tractors, harvesters, and other agricultural machinery without restriction.
Natural ventilation
Open understructure promotes airflow around panels, reducing operating temperatures and improving photovoltaic conversion efficiency.
Rapid deployment
Pre-fabricated components and standardized pile foundations enable fast installation with minimal on-site welding or cutting.
Shed photovoltaic mounting system
Material HDG steel / AL6005-T5 anodized
Clearance 2.5m – 4.5m
Wind load ≤55 m/s
Snow load ≤1.5 kN/m²
Tilt range 5° – 35°
PRODUCT SPECIFICATIONS
Primary material Hot-dip galvanized steel (Q355B, ≥85μm coating) or Anodized Aluminum AL6005-T5
Foundation type Driven piles, screw piles, or concrete ballast
Array height (to panel underside) 2.5m – 4.5m (customizable based on machinery clearance)
Tilt angle Fixed 5° – 35° (adjustable options available)
Module orientation Portrait or landscape; compatible with standard 60/72-cell panels
Design life 25 years (structural) · 10-year corrosion warranty
Compliance IEC 62817, EN 1991, AS/NZS 1170
APPLICATION SCENARIOS
Agrivoltaic farms – Simultaneous crop production and solar generation on the same land parcel.
Livestock grazing areas – Sheep or cattle pasture with overhead solar panels providing shade.
Orchard and vineyard integration – Elevated mounting above trellised crops without shading interference.
Utility-scale PV plants – High-clearance designs for maintenance access and vegetation management.
Community solar gardens – Open structures allowing public access and educational activities beneath panels.
Brownfield and reclaimed land – Elevated mounting avoids ground contamination issues.
FREQUENTLY ASKED QUESTIONS
+ What is the minimum clearance required for standard agricultural machinery?
The system offers adjustable clearance from 2.5m to 4.5m. For tractors and combine harvesters, a minimum of 3.5m is recommended. For smaller equipment such as mowers or sprayers, 2.8m clearance is typically sufficient. Site-specific machinery dimensions should be verified during the design phase.
+ Does the elevated structure affect solar panel performance?
The open understructure promotes airflow that cools the panels, potentially increasing efficiency by 3-5% compared to ground-level mounting in hot climates. However, the elevation may slightly increase wind exposure; the system is engineered to withstand up to 55 m/s wind speeds with proper foundation design.
+ Can the system be installed on sloping terrain?
Yes. The shed mounting system accommodates slopes up to 15 degrees (North-South) and 10 degrees (East-West) using adjustable pile heights and articulated connections. For steeper terrain, custom foundation engineering is available.
+ How does the system handle snow loads in colder climates?
The structural design supports snow loads up to 1.5 kN/m² (approximately 150 kg/m²). The open lattice structure allows snow to shed naturally, reducing accumulation. For regions with heavy snowfall, optional anti-snow brackets or steeper tilt angles are recommended.
INSTALLATION CONSIDERATIONS
Conduct geotechnical survey to determine pile depth and type based on soil bearing capacity and frost line depth.
Verify machinery clearance requirements with farm operators before finalizing column height specifications.
Plan cable routing to avoid interference with agricultural operations; use buried conduits or elevated cable trays.
MAINTENANCE GUIDELINES
Inspect pile foundations annually for signs of settlement or corrosion, particularly in high-moisture soil conditions.
Clean panel surfaces during dry seasons to prevent soiling losses; elevated height allows access via mobile lifts or drones.
Check bolt torque on connections after the first seasonal temperature cycle and every 24 months thereafter.
Shed photovoltaic mounting system · HDG steel / AL6005-T5 · 2.5-4.5m clearance · Agrivoltaic ready · 25-year design life
Physical Properties
Type Photovoltaic stents
Material Material Aluminum Alloy
Surface finishing/treatment

/

Dimension range

customizable is available

 Width Customizable is available
Side Rail Height
Length
Thickness/wire diameter
Max. Working Load
Accessories/related products
Product Features

1. Multiple functions

2. Easy installation

3. Beautiful shape
Color

Design wind pressure: 0.55KN/㎡

Design snow pressure: 0.5KN/㎡

Service life: 30 Years
Enviroment demmand
Application Parking lot
