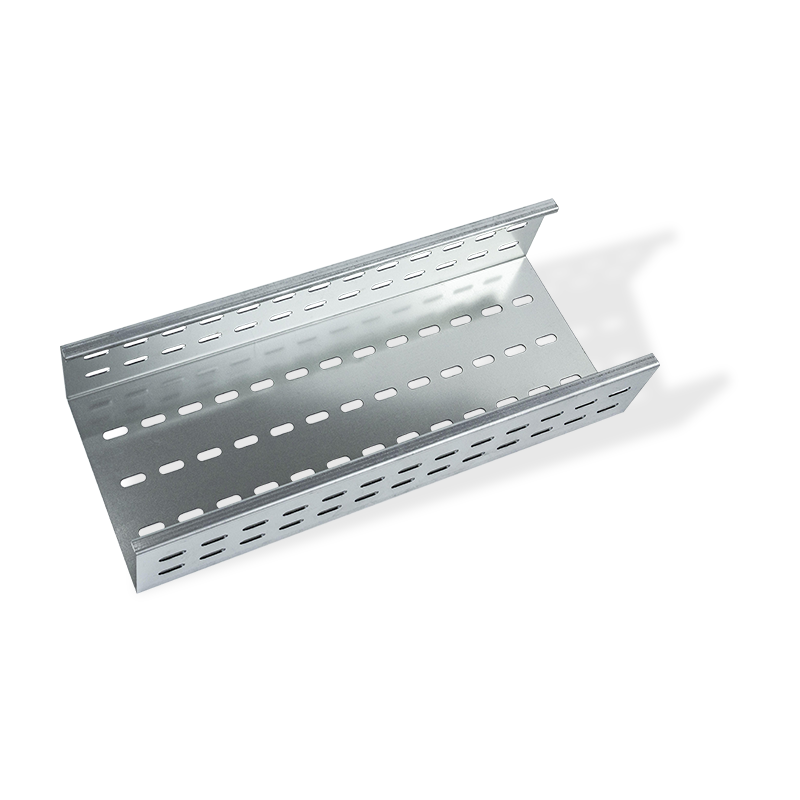

Steel/Aluminum/ss304/ss316L Punched type Cable tray

Inquiry

PREV：Anti-slip Walkable Cable Tray NEXT：Perforated Plastic-Sprayed Cable Management Tray

Product introduction

The tray type bridge is specially designed for modern industrial cable management and is carefully made of high-quality steel, aluminum or stainless steel SS304/SS316L. The surface can be electro-galvanized, hot-dip galvanized, sprayed or polished to meet the needs of different environments. The tray has a sturdy structure and strong load-bearing capacity, and can easily cope with various complex cable layouts. It is suitable for oil & gas, power plant, infrastructural and other fields to effectively manage cable lines and improve the cleanliness and safety of the space. Its conductivity and corrosion resistance make the tray type bridge the preferred product in the fields of civil industry, marine engineering and mining. Whether it is an indoor or outdoor environment, it can show performance and stability.

Physical Properties

Type		Punched type
Material	Material	Steel、 Aluminum、ss304、ss316L
Material	Surface finishing/treatment	Pre-galvanized 8um/ Electro zinc Plating（≥12um） Hot -dip galvanized（＞60um） Plastic-spayed（＞60um） Power coating Acid washing +polishing （option）
Dimension range customizable is available	Width
	Side Rail Height
	Length
	Thickness/wire diameter
	Max. Working Load	According To Size
Product Features		Lightweight, high load capacity, aesthetically pleasing, simple structure, and easy to install.
Color		Silver or others/According to customers
Enviroment demmand
Application		Oil&gas、waste treatment、metro rail-way、power plant、petrochemical、infrastructural、civil industry、marine、mining

Punched Type Cable Tray View series →

The Steel, Aluminum, SS304, and SS316L Stainless Steel Punched Type Cable Tray is a structural component engineered for modern industrial cable management. Manufactured from a selection of materials, it undergoes surface treatments such as electro-galvanizing, hot-dip galvanizing, plastic spraying, or material polishing to meet installation requirements in diverse environmental conditions.

Material options

Steel tray

Offers high structural strength

Aluminum tray

Light weight and inherent corrosion resistance

SS304 stainless steel

Corrosion resistance for standard corrosive environments

SS316L stainless steel

Enhanced chloride resistance for coastal and chemical processing

Product Characteristics

Structural Design: The tray body features a punched-hole pattern. This design aids in cable heat dissipation and weight reduction, while facilitating on-site installation and maintenance.

Surface Treatment: Multiple options including electro-galvanizing, hot-dip galvanizing, plastic spraying, or polishing address various atmospheric corrosion conditions.

Load-Bearing Capacity: The structural design accounts for cable distribution and weight, enabling support for cable loads within specified limits.

Product Advantages

Environmental Adaptability – Material and surface treatment combinations allow application in indoor, outdoor, and chemically corrosive industrial settings.
Cable Management – Punched structure promotes ventilation, heat dissipation, and reduces tray system weight.
Installation and Maintenance – Standardized components enable easy on-site cutting and assembly; punched pattern simplifies line inspection and modifications.

⚙️

Application Fields

This series of cable trays is suitable for applications with defined requirements for cable management and installation environments. Common applications include:

Oil and Gas Facilities Power Plants and Substations Industrial and Civil Infrastructure Mining Operations Marine Engineering and Port Facilities

Surface treatment options

Electro-galvanizing Hot-dip galvanizing Plastic spraying Material polishing

Designed for diverse atmospheric corrosion conditions and industrial environments.
