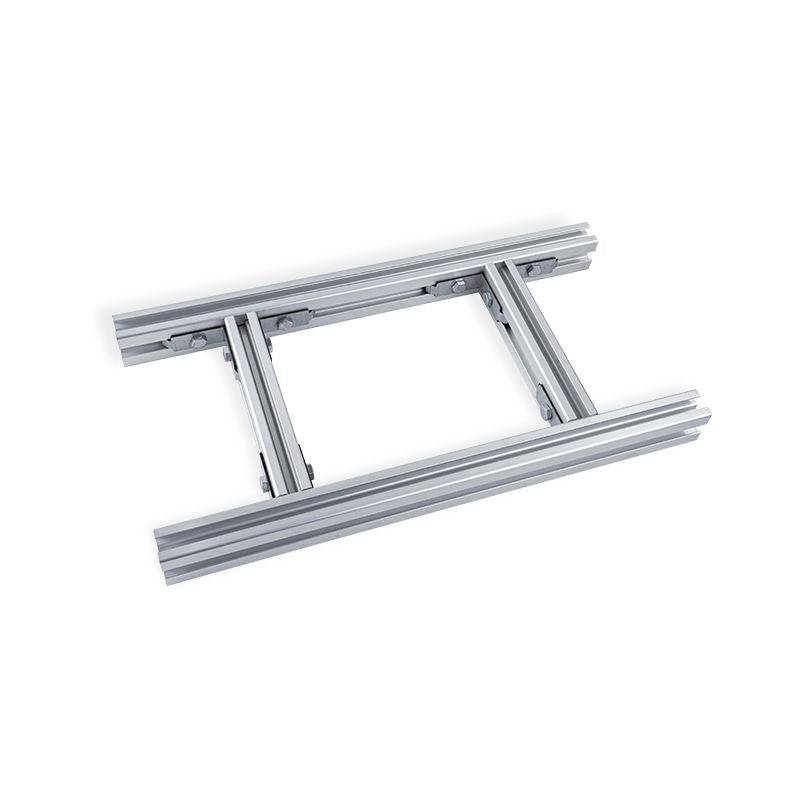

Aluminum cable ladder with open system for cable management

Inquiry
Product introduction

Aluminum profile cable racks are designed for open cable management systems in data centers. They have won wide recognition in the market for their lightweight, high strength and easy maintenance. The use of high-quality aluminum alloy as the main material ensures that the cable rack has load-bearing capacity and corrosion resistance, while reducing the overall weight for easy handling and installation. Its surface is electro-galvanized or hot-dip galvanized, with a coating thickness of ≥12um and >60um respectively, providing rust and corrosion resistance. This treatment not only extends the service life of the cable rack, but also enhances its ability to resist environmental erosion, ensuring long-term and stable operation. The open design of the cable rack makes cable laying and maintenance more convenient. Users can easily pass cables through the steps of the cable rack to achieve flexible wiring layout. At the same time, the open structure also optimizes air circulation and improves the heat dissipation efficiency of the data center.

Physical Properties
Type Cable tray for wiring
Material Material Steel、 Aluminum、ss304、ss316L
Surface finishing/treatment

Pre-galvanized 8um/ Electro zinc Plating(≥12um)

Hot -dip galvanized(>60um)

Plastic-spayed(>60um)

Power coating

Acid washing +polishing (option)

Dimension range

customizable is available

Width
Side Rail Height
Length
Thickness/wire diameter
Max. Working Load According To Size
Accessories/related products
Product Features
Color Silver or others/According to customers
Enviroment demmand
Application
OPEN SYSTEM · CABLE MANAGEMENT

Aluminum cable ladder with open system for cable management

Modular support structure for power, control, and telecommunication cables. Designed for high mechanical strength and corrosion resistance in indoor and outdoor environments.

Product overview

The aluminum cable ladder with open system consists of two longitudinal side rails connected by rungs at fixed intervals, forming a ladder-type structure. Manufactured from extruded aluminum alloy 6063-T5 or 6061-T6, this system provides a lightweight yet rigid support pathway for cables. The open design allows natural convection cooling, prevents heat buildup, and simplifies cable additions or replacements without disconnecting existing lines. Surface treatment includes either mill finish, anodized (8-12μm), or polyester powder coating (RAL colors). Standard rung spacing is 250mm or 300mm, adjustable upon request. The ladder sections join via splices or couplers, supporting straight runs, horizontal bends, vertical inside/outside bends, and riser transitions. Cable retention can be enhanced with optional cleats, rollers, or covered with dividers for segregation.

6063-T5 / 6061-T6 Alloy grades
250 & 300 mm Rung spacing (standard)
Up to 6 m Section length
IP20 - IP66 System protection (with covers)

Core advantages

W

Weight vs strength ratio

Aluminum density 2.7 g/cm³ delivers 60% less weight than steel alternatives while maintaining load capacity up to 200 N/m per rung (tested to IEC 61537).

C

Corrosion resistance

Natural oxide layer or anodized finish resists humidity, salt spray (tested >480h ASTM B117) and chemical agents. Suitable for petrochemical and marine environments.

O

Open accessibility

Rung spacing allows cable droop control and visual inspection. No tools needed for cable laying or rerouting along the path, reducing installation time by 30%.

R

Rapid assembly

Snap-in splice plates and pre-punched holes reduce bolted connections. Compliant with DIN EN 61537 standard for cable ladder systems.

Product characteristics

Material Extruded aluminum alloy 6063-T5 / 6061-T6 (customizable 6005A)
Surface finish Mill finish, anodized (10μm clear or bronze), powder coating RAL 9002 / RAL 7040 / RAL 1018
Side rail dimensions (H x W) 50x30 mm | 80x40 mm | 100x45 mm | 120x50 mm (others on request)
Rung profile 20x12 mm trapezoidal or 25x15 mm flat bar; anti-slip pattern optional
Standard length 3000 mm, 4000 mm, 6000 mm
Rung spacing 250 mm (heavy duty), 300 mm (standard duty), 150 mm (for small cables)
Load class (IEC 61537) Class 60 / Class 120 / Class 180 (max distributed load 1800 N/m)
Temperature range -40°C to +120°C

Application scenarios

Power plants & substations Data centers (overhead cable routing) Water treatment facilities Oil & gas refineries Commercial high-rise buildings Railway signaling networks Renewable energy (solar/wind farms) Airport baggage & control systems

Technical notes & solutions

Electromagnetic interference (EMI) mitigation

For sensitive signal cables, install aluminum ladders with continuous bonding jumpers. Use bonded rung connections to reduce loop impedance below 0.1 ohm per 10m length, satisfying EMC directive 2014/30/EU.

Thermal expansion management

Aluminum expands 23 x 10⁻⁶/K. For runs exceeding 20m, incorporate expansion joints with 15mm gap per 10°C variation. Fixed anchors placed every 6m prevent buckling.

Bimetallic corrosion prevention

When connecting aluminum ladders to galvanized steel supports, use isolating pads or zinc-plated washers with Dacromet coating. Avoid direct copper-aluminum contact in humid conditions.

Seismic & vibration compliance

Ladder systems with bolted splice plates and spring clips withstand Zone 4 seismic acceleration (0.4g). For high vibration areas, use lock nuts and anti-vibration brackets.

Frequently asked questions

What is the difference between cable ladder and cable tray?
Cable ladder has open rungs with spacing (typically 250-300mm) providing ventilation and minimal debris collection, ideal for heavy cables. Cable tray has a solid or perforated bottom, suitable for small diameter cables. Ladder reduces weight and allows easier drop-offs.
Can the aluminum cable ladder be used outdoors in coastal environments?
Yes. Specify anodized finish (min 15μm) or powder coating with epoxy-polyester hybrid. For direct marine splash zones, use 6063 aluminum with chromate-free conversion coating plus heavy-duty polyester coat tested to 1000h salt spray.
How to calculate load capacity for a given span length?
Refer to load tables in IEC 61537. For example, side rail 100x45mm with 3m span and 250mm rung spacing supports distributed load 1200 N/m. Increase rung density or reduce span for higher loads. Consult manufacturer load deflection chart.
Are accessories available for cable fixing without drilling?
Yes. Universal saddle clips, spring steel fasteners, and hook-and-loop straps attach directly to rungs. Also, cable cleats with snap bases fit on side rail perforations (pre-punched holes every 50mm).

Ordering reference information

Part number code ACL-[Rail height]-[Rung spacing]-[Finish code]-[Length cm]
Example ACL-100-300-PC7035-400 → height 100mm, rung spacing 300mm, powder coat RAL7035, 4000mm length
Standard accessories Splice plates (pair), bolts & spring nuts, bonding jumpers, end caps for side rails
Customization options Sloped rungs for drainage, 316 stainless steel hardware, pre-assembled couplers, captive nut channels for rapid mounting
*All technical data based on extruded aluminum profiles. Load capacities verified in accordance with IEC 61537:2021. Product illustrations and specifications subject to engineering changes.
