Fiber cable tray special screws and nuts for fiber cable tray (diamond-shaped) Suppliers
Home / Products / Fiber Cable Tray/Optic Cable Tray / Fiber cable tray special screws and nuts for fiber cable tray (diamond-shaped)
Get in Touch

If you need any help, please feel free to contact us

  • Fiber cable tray special screws and nuts for fiber cable tray (diamond-shaped)
  • Fiber cable tray special screws and nuts for fiber cable tray (diamond-shaped)

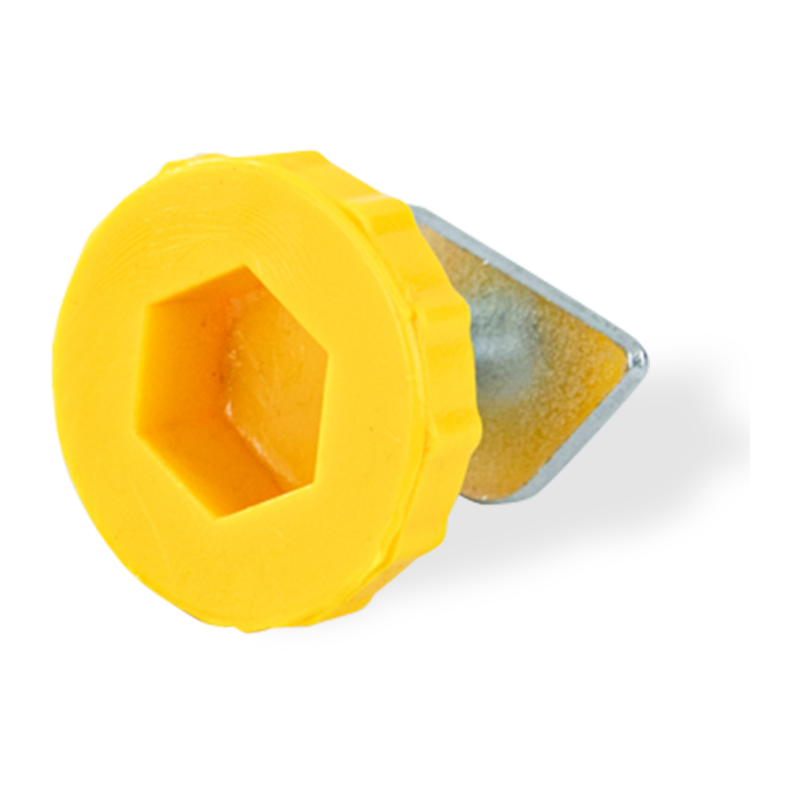

Fiber cable tray special screws and nuts for fiber cable tray (diamond-shaped)

Inquiry
Product introduction

The screws and nuts for optical fiber troughs adopt a unique diamond design to effectively prevent loosening and ensure the stability and safety of the trough connection. The material is made of high-strength alloy, which has corrosion resistance and wear resistance, greatly extending the service life. The screws and nuts are precisely designed, easy to install and disassemble, and improve work efficiency. Whether it is a new project or maintenance and upgrade, the screws and nuts for optical fiber troughs are indispensable accessories. Its unique diamond design and high-strength alloy material provide a strong guarantee for the stable connection of the optical fiber trough, help create an efficient and reliable optical fiber network environment, and ensure the stability and durability of the overall network performance.

Physical Properties
Type Fiber Cable Tray/Optic Cable Tray
Material Material flame-retardant PVC For Straight Section, flame-retardant ABS For Accessories, the material of flexible tube is PP. Flame-retardant material rated UL94 FV-0
Surface finishing/treatment

/

Dimension range

customizable is available

Width 120/240/300/360
Side Rail Height 100
Length 2000/3000/Customized
Thickness/wire diameter
Max. Working Load
Accessories/related products
Product Features

1. Closed design, protect the fiber optic cables from damage.

2. Fiber raceway duct is made from flame-retardant plastic material with smooth surface and good appearance.

3. Offers bend radius control and ensures fiber radius≧40mm Movable cable exit kit is optional to satisfy the expanding request of date center.

4. Different kind of installation way is available like hanging, cabinet top supporting or connecting with other cable tray.

Color Yellow(pantone 123c)
Enviroment demmand Indoor
Application Suitable for a wide range of applications, including fiber optic cable management, power cable management.
Fiber cable tray accessory · anti-rotation geometry
Fiber Cable Tray Special Screws and Nuts
The Fiber Cable Tray Special Screws and Nuts are specialized fastening components designed for the assembly and securing of optical fiber routing systems. Specifically engineered for use with fiber runners, these fasteners feature a diamond-shaped bolt head or nut base that aligns with the T-slots or specific mounting channels of fiber cable trays. This geometry ensures a locking mechanism that prevents the fastener from rotating during installation, facilitating one-handed assembly in overhead or restricted environments. Manufactured from flame-retardant polymers or corrosion-resistant metals, these components maintain the integrity of the cable management structure without introducing sharp edges that could damage sensitive optical fibers.
Anti-Rotation Geometry
Diamond-shaped design fits tray profile, allowing tightening without secondary wrench.
Fast Installation
Streamlines assembly of T-junctions, elbows, and straight sections in data center deployments.
Fiber Protection
Low-profile head ensures no protruding hardware interferes with cable pulling.
Secure Locking
Vibration-resistant connection prevents loosening over time.
Head shape
Diamond-shaped / T-head
Material options
Reinforced Nylon (FR) / Zinc-plated steel
Thread spec
Metric M6 / M8 standard
Compatibility
120mm, 240mm, 300mm fiber trays
Product Characteristics
Component Type Special Fastener (Screw and Nut)
Head Shape Diamond-shaped / T-head configuration
Material Composition Reinforced Nylon (Flame Retardant) or Zinc-Plated Steel
Thread Specification Metric M6 / M8 Standard Threads
Compatibility Standard 120mm, 240mm, and 300mm Fiber Cable Trays
Primary Application Scenarios
Data Center Infrastructure Telecommunication Rooms Server Room Expansion Industrial Control Hubs
Usage Precautions
  • Torque Control: Apply moderate torque during installation. Over-tightening may lead to deformation of plastic tray profiles or thread stripping.
  • Alignment Check: Ensure diamond-shaped head is fully seated within the slot before tightening nut to utilize anti-rotation feature.
  • Compatibility Verification: Verify bolt length is appropriate for tray wall thickness and bracket attachment.
Storage and Maintenance
  • Environmental Conditions: Store in cool, dry environment away from direct sunlight to prevent UV degradation of polymer components.
  • Routine Inspection: During regular data center audits, visually inspect fasteners for signs of physical stress or loosening caused by structural vibrations.
Flame-retardant polymers · Corrosion-resistant metals · Vibration-resistant connection
