Flame-retardant horizontal bend assembly for fiber cable trays

Inquiry

PREV：Fiber cable tray horizontal bend with connecter NEXT：Fiber cable tray horizontal cross with build-in connecter

Product introduction

The horizontal bend assembly of the optical fiber trough is made of high-quality flame-retardant materials to ensure the safety and stability of the optical fiber line at the bend. The assembly design strictly follows the requirements of optical fiber transmission to ensure that the bending radius is not less than 40 mm, effectively reducing signal attenuation and improving transmission quality. The version with built-in connectors simplifies the installation process, improves work efficiency, and is suitable for rapid deployment scenarios; the version without connectors is more flexible and can be customized and installed according to actual needs to meet diverse wiring needs. Whether it is a new project or a renovation and upgrade, the horizontal bend assembly of the optical fiber trough can be perfectly integrated into the optical fiber line, providing all-round protection and support to ensure the stability and efficiency of the overall network performance.

Physical Properties

Type		Fiber Cable Tray/Optic Cable Tray
Material	Material	flame-retardant PVC For Straight Section， flame-retardant ABS For Accessories, the material of flexible tube is PP. Flame-retardant material rated UL94 FV-0
Material	Surface finishing/treatment	/
Dimension range customizable is available	Width	120/240/300/360
	Side Rail Height	100
	Length	2000/3000/Customized
	Thickness/wire diameter
	Max. Working Load
Accessories/related products
Product Features		1. Closed design, protect the fiber optic cables from damage. 2. Fiber raceway duct is made from flame-retardant plastic material with smooth surface and good appearance. 3. Offers bend radius control and ensures fiber radius≧40mm Movable cable exit kit is optional to satisfy the expanding request of date center. 4. Different kind of installation way is available like hanging, cabinet top supporting or connecting with other cable tray.
Color		Yellow(pantone 123c)
Enviroment demmand		Indoor
Application		Suitable for a wide range of applications, including fiber optic cable management, power cable management.

Fiber Cable Tray Accessory

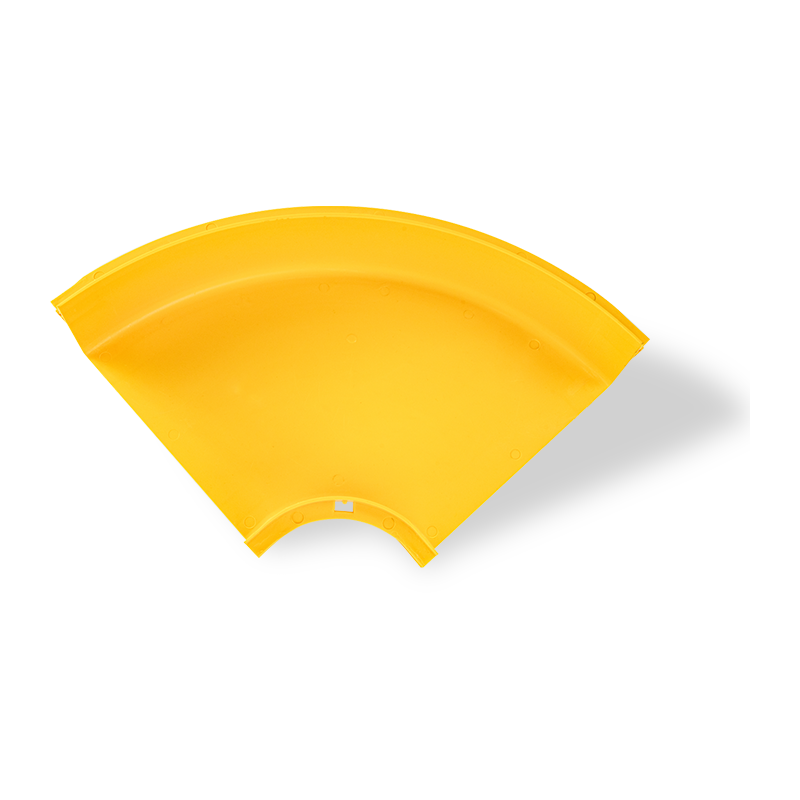

Horizontal Bend Guide for Fiber Optic Cables

Bend radius protection ≥40mm

This product is designed for fiber cable tray systems to guide and protect fiber optic cables at horizontal bends. The assembly is constructed from flame-retardant materials that comply with relevant safety standards, helping to inhibit flame spread and reduce safety risks under heat exposure. Its structural design adheres to the physical requirements of fiber optic transmission, maintaining a minimum bending radius of 40mm to prevent signal attenuation and physical damage caused by over-bending, thereby supporting consistent transmission performance.

Flame-retardant class

UL 94 V-0

Bending radius

≥40mm

Product Configurations

Pre-connected version

Comes with factory-installed connectors, reducing on-site installation steps and suitable for projects with tight schedules or requiring rapid deployment

Factory terminated

Connector-free version

Offers greater flexibility for field customization, allowing trimming and assembly according to actual cable routing needs

Field customizable

Key Features

Manufactured from flame-retardant materials meeting industry standards

Controlled bending radius ≥40mm to minimize optical signal loss

Available in pre-connected and field-assembled versions

Compatible with mainstream fiber cable tray systems

Application Areas

Horizontal bend management in data center fiber pathways

Direction changes in telecommunication cabinet routing

Fiber tray cabling in industrial settings

Bend protection in building structured cabling systems

⌀

Minimum bending radius compliance per IEC 60794-1-21 ensures macro-bend losses below 0.1dB for standard single-mode fibers.
